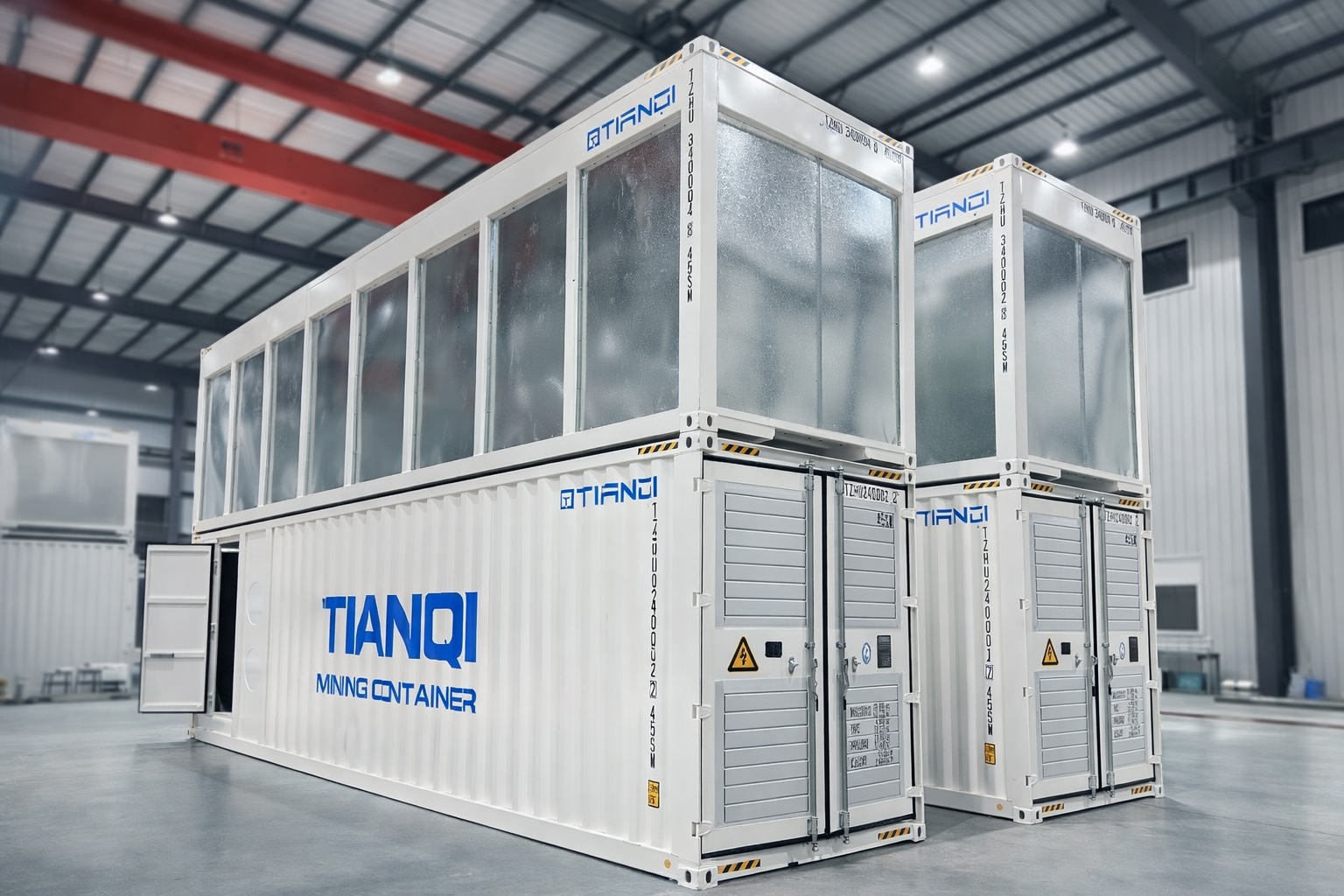

Hydra Whatsminer240 – 240 2U Miners Hydro-Cooling Container

Hydra Whatsminer240 – 240 2U Miners Hydro-Cooling Container

Hydra Whatsminer240 – 240 2U Miners Hydro-Cooling Container is a liquid-cooled mining container designed to benchmark against the Heatcore XS2400, specifically optimized for 2U hydro-cooled miners. The key differentiation lies in the CDU (Coolant Distribution Unit) design. Our system features dual stainless steel pumps operating in a redundant configuration, enabling instant automatic switchover to the standby pump in the event of a pump failure. This design significantly enhances system reliability and maximizes miner uptime, helping customers maintain continuous operation without interruption. In addition, we offer a microchannel dry cooler solution with a maximum heat dissipation capacity of up to 3,000 kW, providing high-efficiency cooling performance and scalable thermal management for large-scale liquid-cooled mining deployments.

Can house
240 2U Miner

Total Capacity
MAX 2500kw

Cooling Fan
2500KW

pdf brochure
Get a Quote

OVERVIEW

Item Description
Container Size 40ft Container 12192*2438*2896mm
Cooling Type 2,500 kW dry cooler
Running miners 240 Whatsminer M63 series
Certification CSC、UL certification、NEC、NFPA、CCC、CE
Switchgear 2*2500A  ACB （LSIG)
Customization Supported

This liquid cooling mining container is designed for high-density hydro ASIC mining operations.

Built for reliability, efficiency, and long-term industrial deployment.

🔹 Key Features

  • Benchmark design against Heatcore XS2400

  • Supports 240 units of 2U hydro-cooled miners

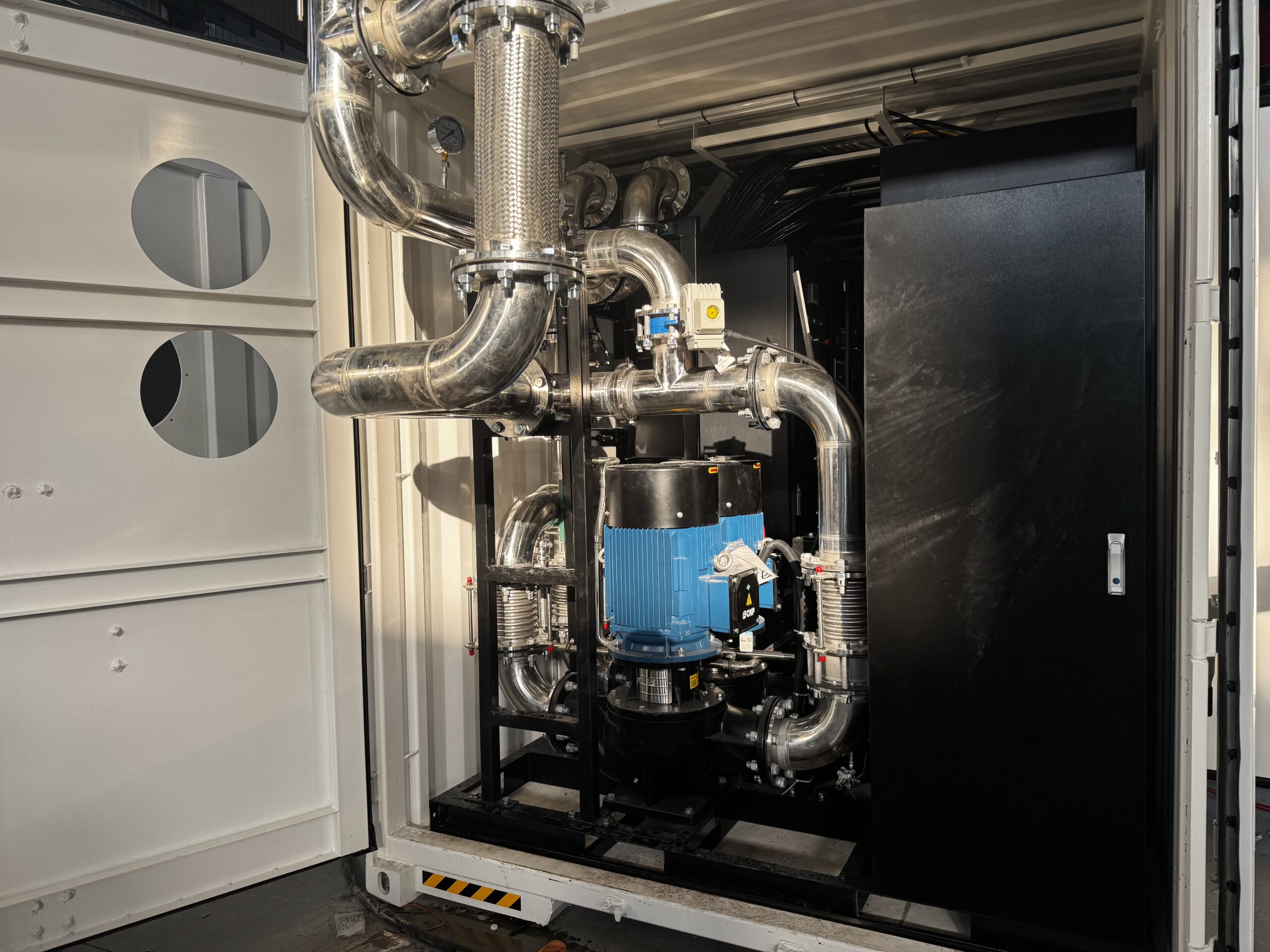

  • Dual stainless steel pump CDU with automatic failover

  • No downtime required for pump failure events

  • Microchannel dry cooler, up to 3,000 kW heat dissipation（Optional）

  • Designed for high-availability liquid-cooled mining operations

  • Compatible with:

    — Whatsminer Hydro Series: M73 / M7DS / M6D

—  Bitdeer SEALMINER A3 Pro Hydro

—  Bitmain S23e U2H

Structure

  • Corten steel structure

  • Designed for 10+ years of industrial operation with excellent corrosion resistance.

  • Side-by-side horizontal layout between the dry cooler and the mining container

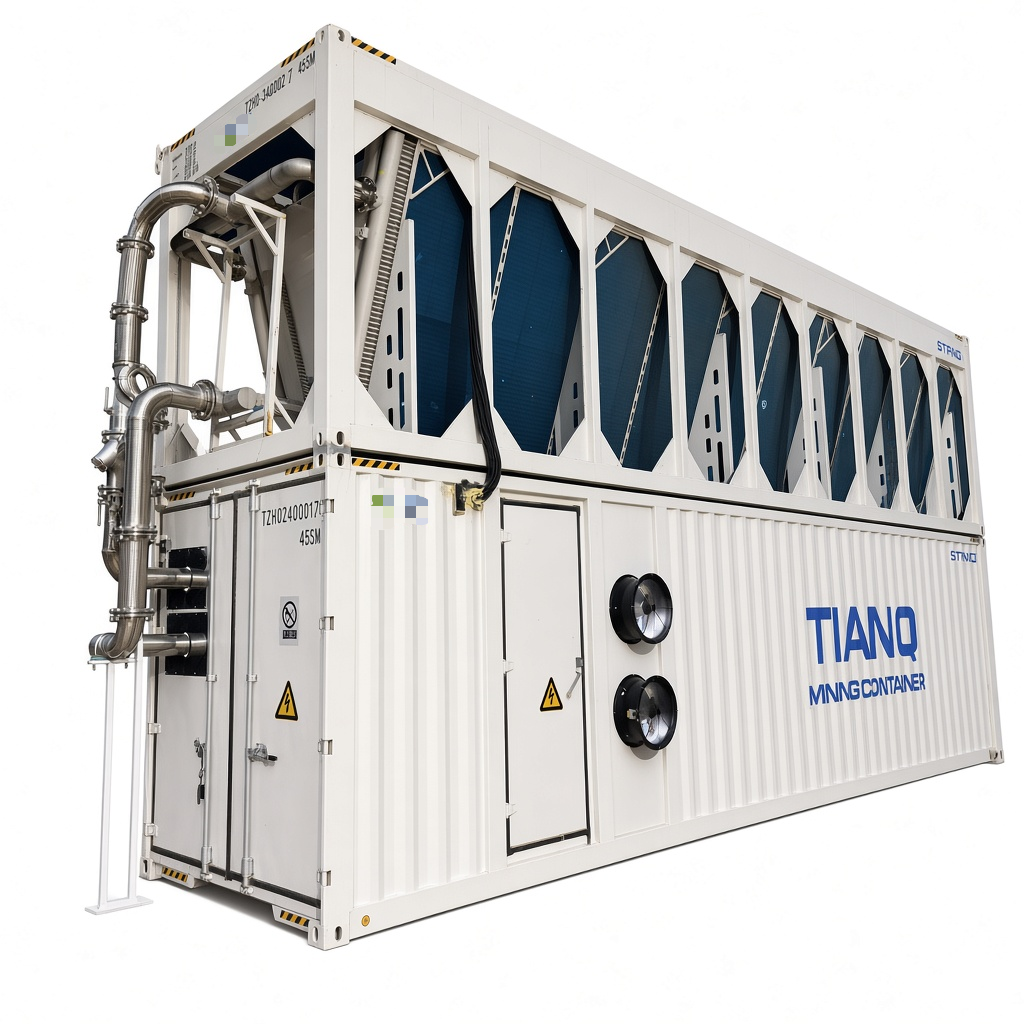

  • Stacked configuration of the dry cooler and the liquid-cooled mining container

Power System

  • 2*2500A Intelligent Power Distribution Cabinet

  • No-Load Operating Power Consumption 130 kW
  • 30% power safety redundancy Allows future power upgrades and overclocking capability.
  • High-density hydro cooling architecture Stable performance even under overclocked operation.

Delivery & Support

  • Factory pre-assembly & testing

  • Global shipping support

  • We provide on-site installation and maintenance guidance services.

  • Long-term technical support

Bullet

  • Real-time monitoring: temperatures, pressure, flow, power, energy, fan/pump status

  • Remote emergency power-off + remote start/stop

  • Intelligent control: constant temperature & constant pressure regulation

  • Leak detection + alarm interlocks (optional)

  • CCTV + access control + door alarms

  • Smoke / temperature-humidity / water ingress sensors (optional)

  • Protection & interlock logic + event logs + report export

  • Modbus / SNMP / TCP-IP / RS485 integration (optional)

Optional Upgrades

A1 – Air Filter

Metal mesh – durable, lowest cost, low filtration

PU foam – washable, balanced, cheap

MERV 8 – best filtration, highest cost

Modular triangular roof extending 1.5 m on both intake and exhaust sides for insulation and weather protection.

Aluminum alloy adjustable blinds covering up to 90% of the intake side to optimize airflow direction.

Thermal isolation system preventing hot air recirculation and improving cooling efficiency.

Creates a flat top and stable hot-air return path, eliminating airflow short-circuiting.

High-efficiency EC direct-drive fan with higher airflow and factory pre-installation.

Drawer-style expandable structure that allows the cold aisle or hot aisle to be widened as needed.The aisle width can be expanded up to 2.5 meters (≈ 8.2 ft), improving airflow organization and cooling efficiency.

The integrated support canopy can block sunlight and rain and snow, resist wind and rain, extend the service life of the water curtain, and the hinge structure design can be closed directly.
