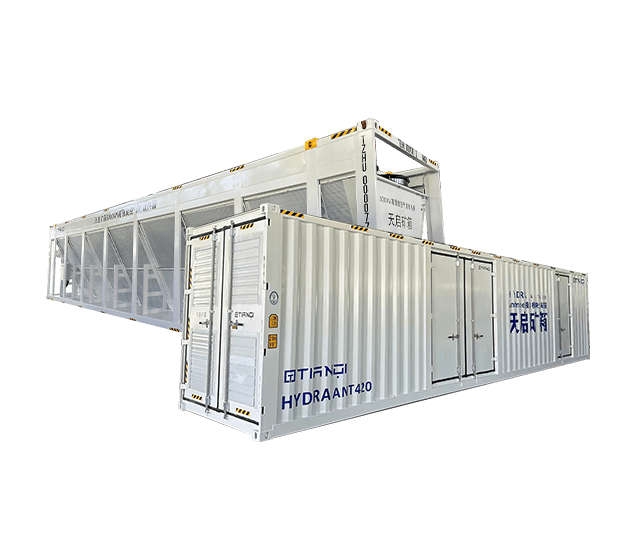

Hydra ANT420 – 420 Miners Hydro-Cooling Container
Hydra ANT420 is designed for customers with high-capacity liquid-cooled mining requirements.
The container supports up to 420 Bitmain ANTMINER S23 Hyd. units, offering a 112-miner capacity advantage compared to the ANTSPACE HD5, which supports 308 units.
This higher miner density significantly reduces the cost per mining slot and allows for better compatibility with specific transformer configurations, improving overall electrical efficiency and site planning flexibility.
When paired with a 2,500 kW dry cooler, Hydra ANT420 can operate in a fully water-free cooling mode, making it ideal for regions with limited water resources or strict environmental requirements.
The CDU system features a dual-pump design (1 duty + 1 standby), enabling maintenance without system shutdown.
This architecture maximizes operational reliability and ensures an annual uptime of up to 99.9%, meeting the demands of large-scale, mission-critical mining operations.
Can house
420 ASIC Miner
Total Capacity
MAX 2500kw
Cooling Fan
2500KW
OVERVIEW
| Item | Description |
|---|---|
| Container Size | 40ft Container 12192*2438*2896mm |
| Cooling Type | 2,500 kW dry cooler |
| Running miners | 420 Antminer S19 Hydro series S21 Hydro series S23 Hydro series |
| Certification | CSC、UL certification、NEC、NFPA、CCC、CE |
| Switchgear | 4*1200A MCCB （LSIG) |
| Customization | Supported |
Bullet
-
Real-time monitoring: temperatures, pressure, flow, power, energy, fan/pump status
-
Remote emergency power-off + remote start/stop
-
Intelligent control: constant temperature & constant pressure regulation
-
Leak detection + alarm interlocks (optional)
-
CCTV + access control + door alarms
-
Smoke / temperature-humidity / water ingress sensors (optional)
-
Protection & interlock logic + event logs + report export
-
Modbus / SNMP / TCP-IP / RS485 integration (optional)
Cooling System
- Fin Material
Hydrophilic aluminum fins (blue), epoxy-coated aluminum foil, 0.115 mm thickness - Tube Material
AISI 304 stainless steel tubes -
Outlet Water Temperature:
35 °C ±1 °C @ 30 °C ambient temperature -
Number of AC Fans:
20 units
Power System
-
4*1200A Intelligent Power Distribution Cabinet
- No-Load Operating Power Consumption 150 kW
Structure
-
Corten steel structure
-
Anti-corrosion industrial coating
-
Side-by-side horizontal layout between the dry cooler and the mining container
-
Stacked configuration of the dry cooler and the liquid-cooled mining container
Delivery & Support
-
Factory pre-assembly & testing
-
Global shipping support
-
We provide on-site installation and maintenance guidance services.
-
Long-term technical support
Optional Upgrades
A1 – Air Filter
Metal mesh – durable, lowest cost, low filtration
PU foam – washable, balanced, cheap
MERV 8 – best filtration, highest cost
A2｜Sunshade Roof
Modular triangular roof extending 1.5 m on both intake and exhaust sides for insulation and weather protection.
A3｜Adjustable Blinds
Aluminum alloy adjustable blinds covering up to 90% of the intake side to optimize airflow direction.
A4｜Hot & Cold Isolation
Thermal isolation system preventing hot air recirculation and improving cooling efficiency.
A5｜Internal Ceiling
Creates a flat top and stable hot-air return path, eliminating airflow short-circuiting.
A6｜Stronger Fan
High-efficiency EC direct-drive fan with higher airflow and factory pre-installation.
A7 – Expandable Sliding Aisle (Drawer-Type)
Drawer-style expandable structure that allows the cold aisle or hot aisle to be widened as needed.The aisle width can be expanded up to 2.5 meters (≈ 8.2 ft), improving airflow organization and cooling efficiency.
A8 – Integrated support shed
The integrated support canopy can block sunlight and rain and snow, resist wind and rain, extend the service life of the water curtain, and the hinge structure design can be closed directly.
